Sprinkler Irrigation System
Shyam offers HDPE Coupled Pipes & Fittings For Sprinkler System are used for spraying water through nozzles (sprinklers) to get maximum efficiency in water use. This HDPE sprinkler irrigation system consists of pipes
and fittings along with a complete range of accessories. All sprinklers undergo extensive quality testing in our well-equipped state of the art lab. Moreover, the performance of the products are also tested in the field to ensure uniform water distribution and higher efficiency.
The pipes to be used in the system are made up from 100% High density polyethylene granules. It also posses the IS standard mark as per IS : 14151 - 99 Part - II. 'SHYAM' brand sprinkler pipes are light in weight, flexible & highly durable.

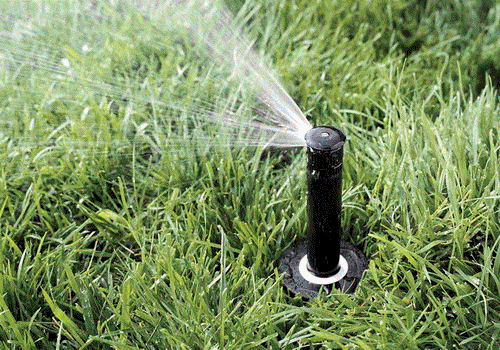

In the sprinkler method of irrigation, water is sprayed into air and allowed to fall on the ground somewhat resembling rainfall. The spray is developed by the flow of water under pressure through small orifices or nozzles. The pressure is usually obtained by pumping. With careful selection of nozzle sizes, operating pressure and sprinkler spacing the amount of irrigation water required to refill the crop root zone can be applied nearly uniform at the rate to suit the infiltration rate of soil.
Versatile Application:
The major & end use of 'SHYAM' Sprinkler Pipes are
- Sprinkler Irrigation System
- Potable water supplies under water piping.
- For the purpose of left irrigation.
- Directly from canals, dams etc.
- Areas located at a higher elevation than the source can be irrigated
Techno Economic Advantage:
'SHYAM' Sprinkler pipes have various advantages over the conventional pipe system. These are
- Outstanding resistance to conventional chemical & environments.
- Light in weight.
- Exception durability and long life.
- Excellent flow characteristics.
- Absolutely light & lick proof.
- Anti-Cracking male-female coupler having leak proof facilities

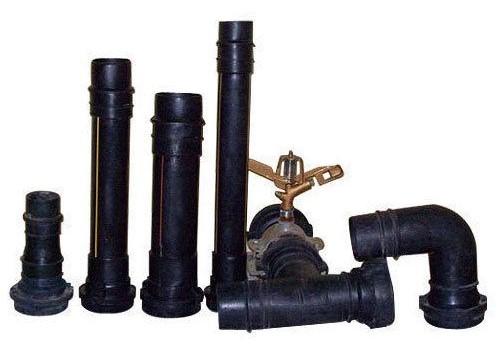

Sprinkler Pipes Accessories:
- Coupled Bend.
- Coupled Tee.
- Pump Connecting Nipple.
- Sprinkler Attachment Foot Buttons.
- End Cap.
- Riser Pipe.
- Sprinkler Nozzle.
Shyam HDPE Sprinkler Irrigation Pipes & Fittings
Available with us is a wide range of HDPE sprinkler Pipe & fittings that are designed in compliance with the several IS standards. Available in several sizes and dimensions, these pipes and fittings are mainly used for water conservation. Being precision designed and pressure resistant, these pipes and fittings save water hence are ideal for being used in agriculture and farming purposes. Shyam Pipe provides a wide range of irrigation products which makes It a global player in the irrigation system.
SPRINKLER PIPES DIMENSION CHART AS PER IS: 14151
| DN | Class 1 (0.25 Mpa) | Class 2 (0.32 Mpa) | Class 3 (0.4 Mpa) | Class 4 (0.6 Mpa) | ||||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 40 | - | - | - | - | - | - | 2.30 | 2.80 |
| 50 | - | - | - | - | 2.00 | 2.40 | 2.90 | 3.40 |
| 63 | - | - | 2.00 | 2.40 | 2.50 | 2.90 | 3.80 | 4.40 |
| 75 | 2.00 | 2.40 | 2.50 | 2.90 | 3.00 | 3.40 | 4.50 | 5.20 |
| 90 | 2.20 | 2.60 | 2.90 | 3.40 | 3.50 | 4.10 | 5.30 | 6.10 |
| 110 | 2.70 | 3.20 | 3.40 | 3.90 | 4.20 | 4.80 | 6.50 | 7.40 |
