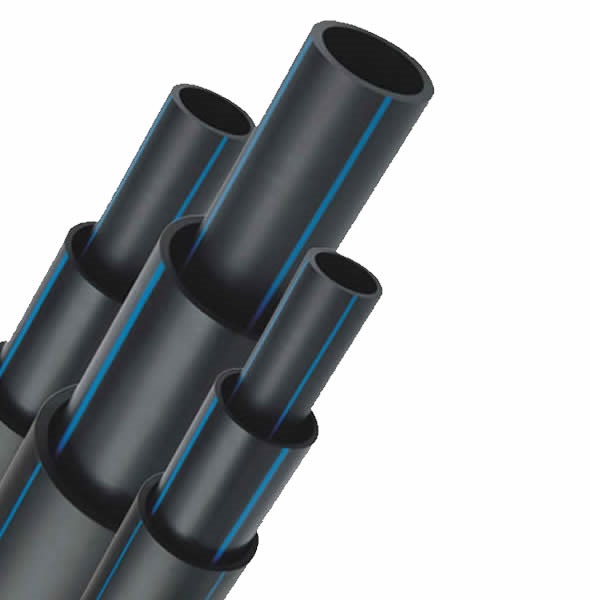

HDPE Pipes
We offer a wide range of High Density Polyethylene (HDPE) Pipes that are used in various industries. Being resistant to corrosion, durable, light in weight, high impact strength, these are considered to be the best options available in the market. These also avoid various problems that are otherwise caused by Cast Iron G.I. Pipes Mild and Stainless Steel Pipes, PVC and Hume Pipes. HDPE pipes and fittings are used in industries as well as in agricultural field. Our diverse range of HDPE pipes are also used in sewage pipe system, water supply system, food and dairy industry, fuel gas, under water piping, oil & petroleum industries and ducting.
"SHYAM" brand High Density Polyethylene pipes are suitable for applications in various fields such as water supply, sewage, Irrigation, Drainage, Chemical Conveyance, effluent disposal, Gas pipelines, telephone cable ducting etc. It has unique properties like light in weight, flexibility, durability and low thermal conductivity and resistance against chemicals
Specification :
- Materials: High Density Polyethylene Polymers Materials.
- Product Range: 20 mm to 1000 mm Outer diameter
- Pressure Class: 2.5,4,6,8,10,12.5 &16 kg/cm
- Colour: Block Color, Orange Color, Blue Color, Yellow Color

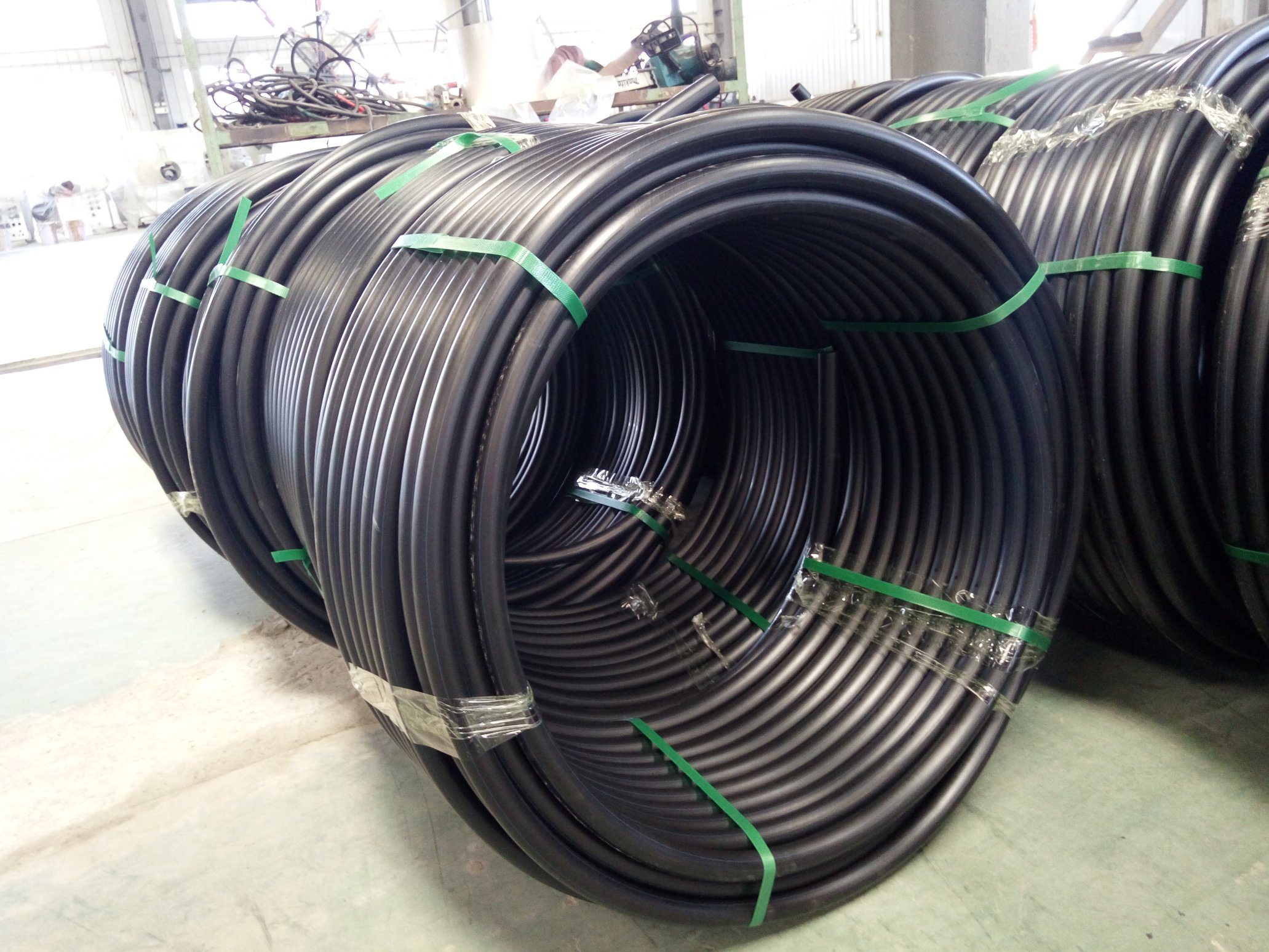

- Length : Available in Standard length 50,100,200,500 and 1000 meter coils depending on the pipes dimensions, Or large diameter in fixed length of 6 Meter as per customer requirements.
Application :
- Municipal & Hazardous Waste Landfills
- Effluent Treatment Plants
- Chemical Processing Plants
- Reservoirs,Roads & Canals
- Railways
- Aquaculture Sector
- Tunnels
Advantages compare to other pipe :
| Properties | PVC | PE 100 | D.IRON | GRP |
|---|---|---|---|---|
| Brittleness Properties | Frail | Very Resistant | Resistant | Partly Resistance |
| Maximum Produced Length (m) | 6 | 500 | 6 | 6/12 |
| Corrosion Resistance - Abrasion Resistance | Partly Resistance | Very Resistance | Very Frail | Frail |
| Hygienic Superiority | Worrisome | Excellent | Worrisome | Problematic |
| Wall Elasticity coeff. | 33 | 377 | 1 | 33 |
| Water Hammer Damping Ability * | Problematic | Excellent | Problematic | Problematic |
| Need for Trench Widening (%Pipe Diameter) | More than 110% | More than 5-10% | More than 110% | More than 200% |
| Bedding Necessity Around Pipe (Max:100, Min:0) | 100 | 10 | 60 | 100 |
| Adaptation to Ground Movement | No | Adapts | No | No |
| Branching Possibility | Very Difficult | Very Easy | Difficult | Difficult |
Wall Thickness of Pipes for Material Grade PE 63
| Nominal Dia | Wall Thickness of Pipes for Pressure Ratings of | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | PN2.5 | PN4 | PN6 | PN8 | PN10 | PN12.5 | PN16 | |||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 20 | - | - | - | - | - | - | - | - | 2.3 | 2.8 | 2.8 | 3.3 | 3.4 | 4.0 |
| 25 | - | - | - | - | - | - | 2.3 | 2.8 | 2.8 | 3.3 | 3.4 | 4.0 | 4.2 | 4.9 |
| 32 | - | - | - | - | 2.3 | 2.8 | 3.0 | 3.5 | 3.6 | 4.2 | 4.4 | 5.1 | 5.4 | 6.2 |
| 40 | - | - | 2.0 | 2.4 | 2.8 | 3.3 | 3.7 | 4.3 | 4.5 | 5.2 | 5.5 | 6.3 | 6.7 | 7.6 |
| 50 | - | - | 2.4 | 2.9 | 3.5 | 4.1 | 4.6 | 5.3 | 5.6 | 6.4 | 6.8 | 7.7 | 8.4 | 9.5 |
| 63 | 2.0 | 2.4 | 3.0 | 3.5 | 4.4 | 5.1 | 5.8 | 6.6 | 7.0 | 7.9 | 8.6 | 9.7 | 10.5 | 11.8 |
| 75 | 2.3 | 2.8 | 3.6 | 4.2 | 5.3 | 6.1 | 6.9 | 7.8 | 8.4 | 9.5 | 10.2 | 11.5 | 12.5 | 14.0 |
| 90 | 2.8 | 3.3 | 4.3 | 5.0 | 6.3 | 7.2 | 8.2 | 9.3 | 10.0 | 11.2 | 12.2 | 13.7 | 15.0 | 16.7 |
| 110 | 3.4 | 4.0 | 5.3 | 6.1 | 7.7 | 8.7 | 10.0 | 11.2 | 12.3 | 13.8 | 14.9 | 16.6 | 18.4 | 20.5 |
| 125 | 3.8 | 4.4 | 6.0 | 6.8 | 8.8 | 9.9 | 11.4 | 12.8 | 13.9 | 15.5 | 16.9 | 18.8 | 20.9 | 23.2 |
| 140 | 4.3 | 5.0 | 6.7 | 7.6 | 9.8 | 11.0 | 12.8 | 14 .3 | 15.6 | 17.4 | 19.0 | 21.1 | 23.4 | 26.0 |
| 160 | 4.9 | 5.6 | 7.7 | 8.7 | 11.2 | 12.6 | 14.6 | 16.3 | 17.8 | 19.8 | 21.7 | 24.1 | 26.7 | 29.6 |
| 180 | 5.5 | 6.3 | 8.6 | 9.7 | 12.6 | 14.1 | 16.4 | 18.3 | 20.0 | 22.2 | 24.4 | 27.1 | 30.0 | 33.2 |
| 200 | 6.1 | 7.0 | 9.6 | 10.8 | 14.0 | 15.6 | 18.2 | 20.3 | 22.3 | 24.8 | 27.1 | 30.1 | 33.4 | 37.0 |
Wall Thickness of Pipes for Material Grade PE 80
| Nominal Dia | Wall Thickness of Pipes for Pressure Ratings of | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | PN2.5 | PN4 | PN6 | PN8 | PN10 | PN12.5 | PN16 | |||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 20 | - | - | - | - | - | - | - | - | - | - | 2.3 | 2.8 | 2.8 | 3.3 |
| 25 | - | - | - | - | - | - | - | - | 2.3 | 2.8 | 2.8 | 3.3 | 3.5 | 4.1 |
| 32 | - | - | - | - | - | - | 2.4 | 2.9 | 3.0 | 3.5 | 3.6 | 4.2 | 4.5 | 5.2 |
| 40 | - | - | - | - | 2.3 | 2.8 | 3.0 | 3.5 | 3.7 | 4.3 | 4.5 | 5.2 | 5.6 | 6.4 |
| 50 | - | - | 2.3 | 2.8 | 2.9 | 3.4 | 3.8 | 4.4 | 4.6 | 5.3 | 5.6 | 6.4 | 6.9 | 7.8 |
| 63 | - | - | 2.5 | 3.0 | 3.6 | 4.2 | 4.7 | 5.4 | 5.8 | 6.6 | 7.0 | 7.9 | 8.7 | 9.8 |
| 75 | - | - | 2.9 | 3.4 | 4.3 | 5.0 | 5.6 | 6.4 | 6.9 | 7.8 | 8.4 | 9.5 | 10.4 | 11.7 |
| 90 | 2.3 | 2.8 | 3.5 | 4.1 | 5.1 | 5.9 | 6.7 | 7.6 | 8.2 | 9.3 | 10.0 | 11.2 | 12.5 | 14.0 |
| 110 | 2.7 | 3.2 | 4.3 | 5.0 | 6.3 | 7.2 | 8.2 | 9.3 | 10.0 | 11.2 | 12.3 | 13.8 | 15.2 | 17.0 |
| 125 | 3.1 | 3.7 | 4.9 | 5.6 | 7.1 | 8.1 | 9.3 | 10.5 | 11.4 | 12.8 | 13.9 | 15.5 | 17.3 | 19.3 |
| 140 | 3.5 | 4.1 | 5.4 | 6.2 | 8.0 | 9.0 | 10.4 | 11.7 | 12.8 | 14.3 | 15.6 | 17.4 | 19.4 | 21.6 |
| 160 | 4.0 | 4.6 | 6.2 | 7.1 | 9.1 | 10.3 | 11.9 | 13.3 | 14.6 | 16.3 | 17.8 | 19.8 | 22.1 | 24.6 |
| 180 | 4.4 | 5.1 | 7.0 | 7.9 | 10.2 | 11.5 | 13.4 | 15.0 | 16.4 | 18.3 | 20.0 | 22.2 | 24.9 | 27.6 |
| 200 | 4.9 | 5.6 | 7.7 | 8.7 | 11.4 | 12.8 | 14.9 | 16.6 | 18.2 | 20.3 | 22.3 | 24.8 | 27.6 | 30.6 |
