PLB Duct Pipes
HDPE PLB Ducts are manufactured using high grade of HDPE with inner layer of Anti Oxidant content and other recommended additives. The inner layer is silicon coated which minimizes the friction between OFC and the duct during the process of blowing the cable into the ducts, thus providing smooth installation. PLB HDPE duct consists of two concentric layers, the outer layer being HDPE; co-extruded with an inner uniform layer of solid silicone permanent lubricant, to reduce the internal co-efficient of friction.PLB Duct Pipes are used as underground cable conduits for optical fiber cables, communication cables etc. and are suitable for cable installation by blowing tor pulling by rope techniques.
We are approved vendor and supplier to PGCIL, IOCL, GSPL, BSNL, MTNL Tata Tele, Hutch in India and also many customers in other countries as well. Can specially deliver tailor-made as per specifications to suit customers requirement.
Tests Are Conducted In Routine On Telecom Ducts
- Visual inspection on outer and inner surface.
- Dimensions - Diameter and thickness.
- Tensile strength and elongation.
- Reversion test.
- Impact strength.
- Quality test.
- Coil test.
- Hydraulic characteristics.
Advantages Of Prime PLB HDPE Duct
- Internally lubricated so that the cable flows smoothly without any friction while blowing / pulling
- Durability
- Easy to handle and install
- Superior protection in harsh environment
- Traceable
- Non toxic
- Cost effective & permanent

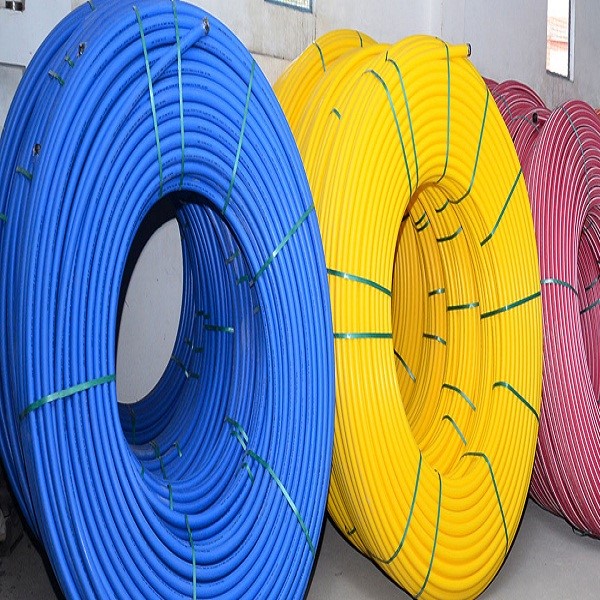

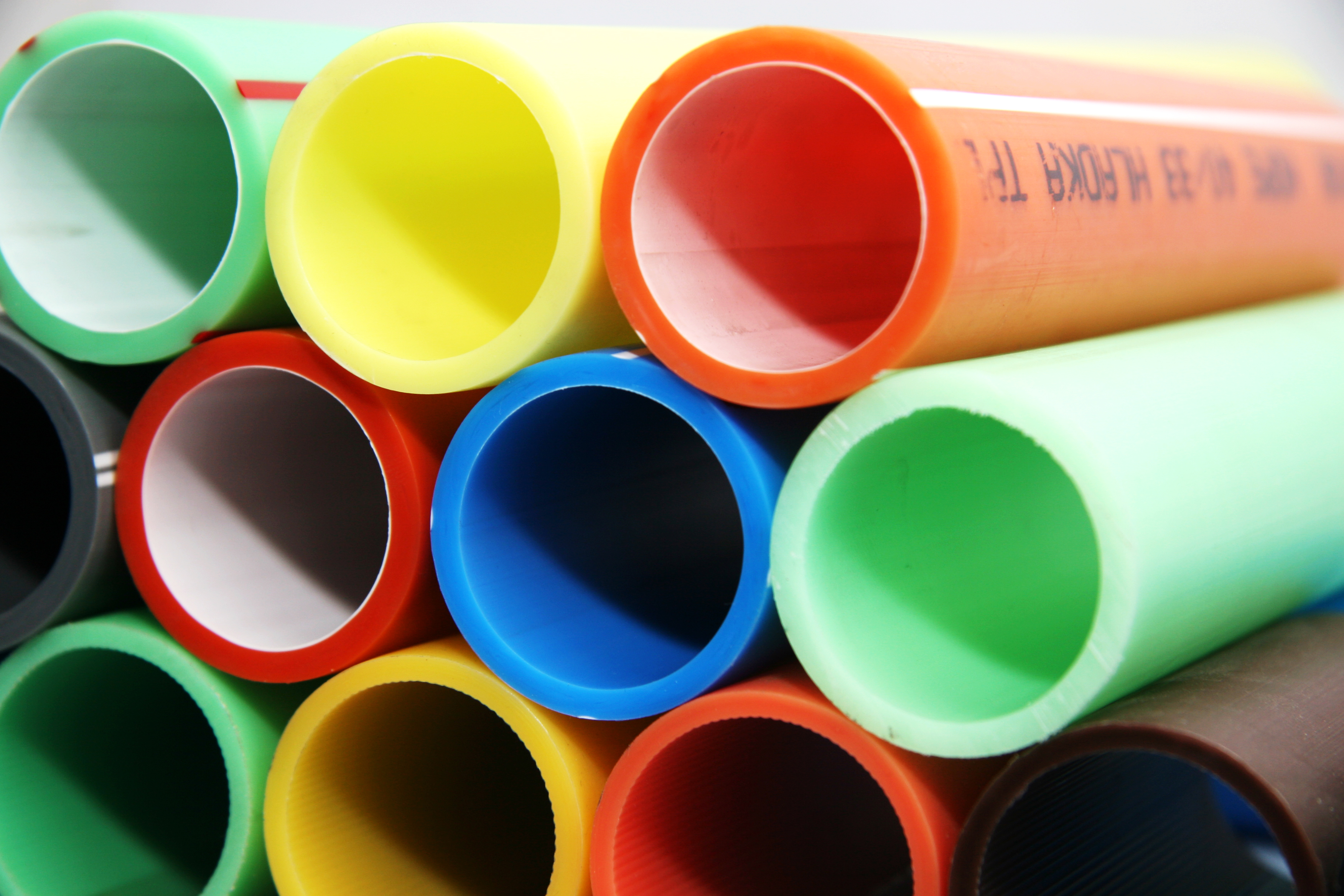

The PLB Duct is manufactured in various colors and sizes. The colors like Blue, Red, Green, Orange, Brown and Grey are some of the prominent colors widely used in the manufacturing of the PLB Duct. At the same time, these HDPE Telecom Ducts come in various sizes like 32/26 Mm, 40/33 Mm, 50/42 Mm.
The companies involved in the manufacturing also manufacture the products based on customer's demands and thus offer a flexibility to the customers for the custom made products.
